HIGH RESOLUTION SOUND

Wider frequency range, resulting from the tweeter's optimal aluminium diaphragm shape and Vertex Drive System, enriches and expands sound field presence in the car cabin.

Dynamic range is widened, thanks to the speaker's light, rigid Aramid fiber cone, superior linearity and low distortion.

Pioneer

DESIGNED FOR HI-RES AUDIO

Pioneer

The quality of music recordings available to listeners has evolved. Hi-Res Audio recordings contain significantly more data compared to a standard CD recording and require a loudspeaker that is capable of smoothly reproducing frequencies of 40kHz or higher. The Z speakers are designed to deliver sound that’s clearer, sharper and more complex – reproducing music that is closer to the original performance.

29MM ALUMINUM ALLOY BALANCED DOME TWEETER

Pioneer

The Z tweeter’s aluminum alloy diaphragm allows the tweeter to remain pistonic and linear at ultrasonic frequencies. The unique diaphragm shape, developed using HSDOM (Harmonized Synthetic Diaphragm Optimum Method) computer analysis, accurately controls differential vibration produced by the diaphragm and improves high frequency dispersion. Pioneer’s Vertex Drive System improves the mechanical coupling of the voice coil and the tweeter diaphragm, reducing distortion and coloration caused by low damping and increasing power handling.

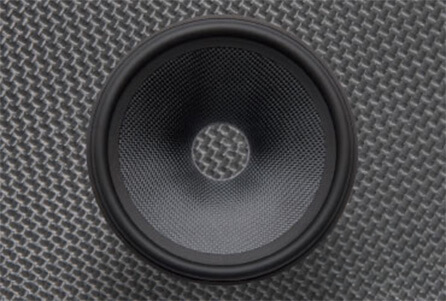

DUAL LAYER CONE CONSTRUCTION

Pioneer

Twaron is a synthetic aramid fiber that is very strong, heat resistant and rigid when woven into a cloth material. Cellulose fibers are naturally self-damping and reduce unwanted resonance. The TS-Z65CH dual layer cone, constructed with both a Twaron layer and a cellulose layer, combines the strengths of both materials. The result is fast response and clear bass, with low coloration and distortion.

General

Pioneer

TS-Z65C

Pioneer

TS-Z65CH

Pioneer

TS-Z65F

Size16.5 cm16.5 cm16.5 cm
Maximum Peak Power300 W330 W330 W
RMS100 W110 W110 W
Frequency Response32 Hz to 96 kHz30 Hz to 96 kHz32 Hz to 96 kHz
Sensitivity ( 1W / 1m )85 dB85 dB85 dB
Impedance4 Ω4 Ω4 Ω
Crossover Frequency2,000 Hz2,000 Hz2,200 Hz
Mounting Depth65 mm65 mm65 mm
Cut-Out Dimensionsø144 mmø144 mmø144 mm
Tweeter Mounting Depth15 mm15 mm -
Tweeter size29 mm29 mm -
